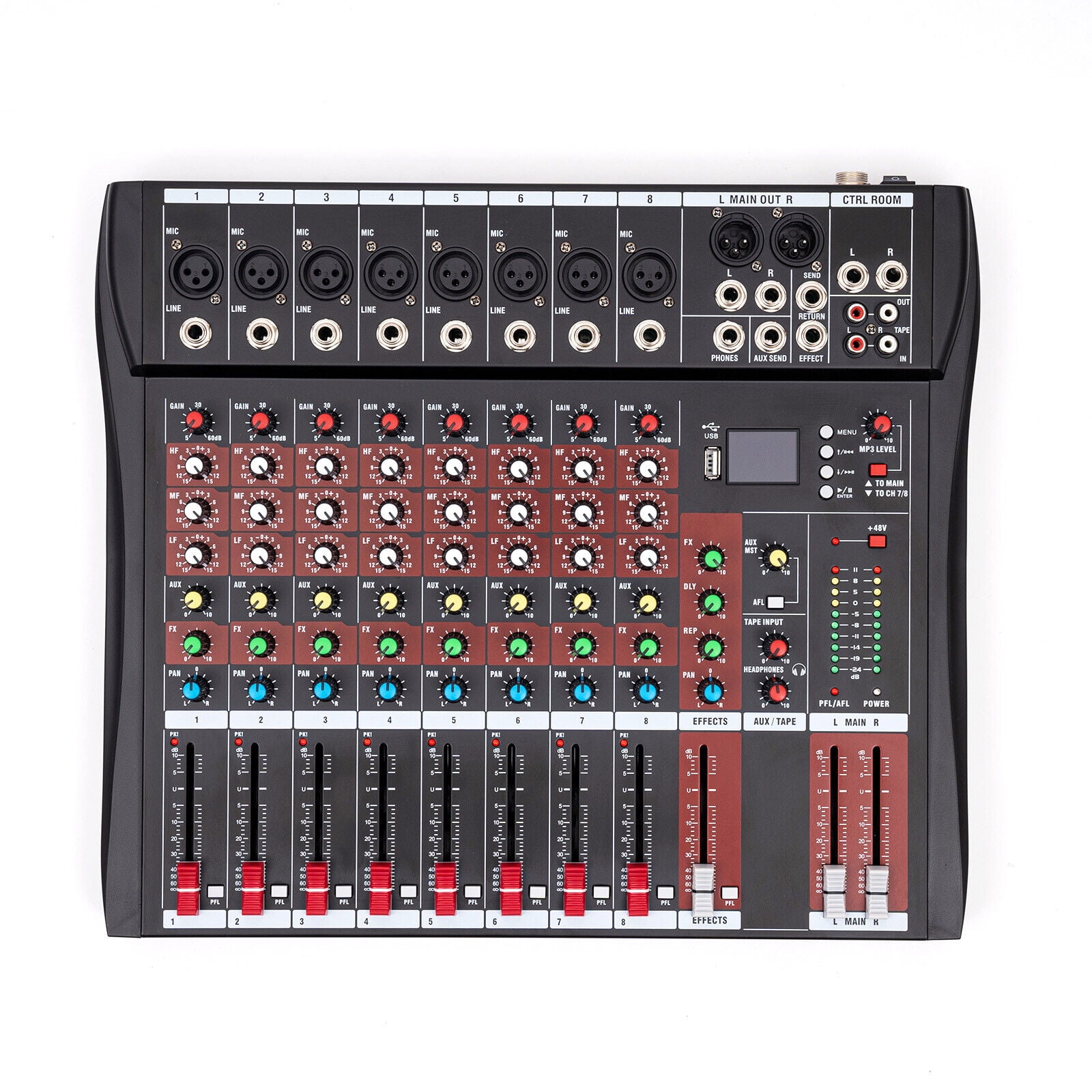

8 Channel Mixing Console Studio Audio DJ Live KTV Bluetooth Sound Board
Product details
| Management number | 238190554 | Release Date | 2026/07/11 | List Price | US$30.70 | Model Number | 238190554 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
<p>Application</p> <p>It is suitable for home KTV, campus language, conferences, bars, stage performances, music dining bars, recording studio, etc.</p> <p> </p> <p>Specification</p> <p>Color: Black</p> <p>Material: Metal, Damping </p> <p>Display: LED</p> <p>Process: Powder Coating</p> <p>Number of Channels: 8</p> <p>Plug: US Standard</p> <p>Max Input Level: +24dBu(MIC/Line)</p> <p>Max Output Level: +26dBu(XLR)</p> <p>Master Meters: 10 Segment -24dB to CLIP</p> <p>Frequency Response: 20Hz to 30KHz 0.5dB</p> <p>Max Input Power: 15W</p> <p>THD+N: ＜0.01%(Channel Input to Mix Output)</p> <p>Crosstalk at 1kHz: ＞85dB(Fader/Mute Shut Off); ＞82dB(Inter Channel)</p> <p>Noise (22Hz to 22KHz): Equivalent Input Noise -122dBu, Residual Output Noise <-90dBu</p> <p>2-track Return: RCA, Unbalanced, 4K ohm, -2dBu</p> <p>2-track Send: RCA, Unbalanced, ＜75 ohm, -2dBu</p> <p>L/R Output: XLR Unbalanced, Pin 2 Hot, ＜75 ohm, +4dBu, Max.+22dBu</p> <p>FX/AUX Output: TRS Unbalanced, Tip Hot, ＜75 ohm, -2dBu, Max.+18dBu</p> <p>Headphones: TRS, Tip L, Ring R, 30 to 600 ohm Headphones Recommended</p> <p> </p> <p>Mono Channel:</p> <p>XLR Balanced, Pin 2 Hot, 2K ohm, Sensitivity -40 to +14dBu</p> <p>TRS Balanced, Tip Hot, 10K ohm, Sensitivity -20 to +14dBu</p> <p>XLR, Phantom +48V</p> <p> </p> <p>Adaptor:</p> <p>Model: LWV, 16PS</p> <p>Input: AC 110V 50Hz, 18W</p> <p>Output: AC 18Vx2, 350mA</p> <p>Slide Length: 7cm/2.76inch </p> <p>Gross Weight: 4.65kg/10.25lbs</p> <p>Net Weight: 4kg/8.82lbs</p> <p>Package Size: 44.5*42*11cm/17.52*16.54*4.33inch</p> <p>Product Size: 40*34*5cm/15.75*13.39*1.97inch</p> <p> </p> <p>Package Included</p> <p>1*Mixer</p> <p>1*Power Adapter</p> <p>1*English Manual</p> <p> </p> <p>Notes</p> <p>Please note that the product needs to be used with an amplifier. The mixing console itself will have noise <-60BD.</p>
- High-quality Materials: This product is made of high-quality metal and damping, and the surface is treated with powder coating process, which is very durable. You can use it for a long time
- Three-band Equalizer: The product is equipped with a three-band equalizer for the main channel to adjust the music in sections so that the vocals and music better blend to make the sound quality more rich and delicate to bring you a wonderful musical feast.
- 8-way Microphone Input: The mixer features eight microphone input channels and one pair of stereo input jacks for fine processing of a wide range of audio signals for excellent sound. The finely crafted jacks make the microphone connection more tightly, input more stable.
- High Compatibility: The product's built-in Bluetooth module is compatible with desktop computers, laptops, cell phones, tablets, and MP3 devices. You just press the switch button to switch the Bluetooth mode to open the electronic device that drives the Bluetooth and search for the link that can be easily connected, which is convenient and practical.
- Accurate Vocal Adjustment: The product has a high/medium/bass independent adjustment knob to make up for the lack of vocal line to make the human voice full and clear. The product is equipped with total volume, effect volume and channel volume adjustment faders, which can accurately adjust the volume of each sector to create a more outstanding sound effect.
- Real-time Monitoring: The mixer has a monitor headphone jack, and access to headphones can monitor the level signal of each channel in real-time, which facilitates accurate adjustment to achieve more desirable results.
- Diverse Music Styles: The product has six built-in music styles to meet your different needs, which are Nature, Pop, Rock, Jazz, Classical and Country. You can also play your favourite music through the USB port for better enjoyment.
| Brand | Unbranded |
|---|---|
| Audio mixer type | Mixer |
| Channels | 8 |
| Digital/analog | Digital |
| Is powered | Y |
| Connection | RCA, XLR, TRS |
| Input/output quantity | 10 |
| Inputs/Outputs | XLR|TRS|RCA |
| Features | Bluetooth |
| Wireless | Bluetooth |
| Weight | 4.65 kg |
| Audio output | 15 W |
| Material | ABS |
| Color | Black |
| Digital audio file format | MP3 |
| Input/output direction | Input, Output |
| Has written warranty | No |
| Volts | 110V|18V |
| Model | LWV, 16PS |
